KA022 is an unique Revolving door with "3 in 1 function" which included Revolving door +Sliding door+ Balanced door. KBB’s superior design provides an imposing entrance to any building, while serving as an airlock as well, to minimize a building’s heating or air conditioning losses, therefore maximizing energy savings .
Safety functions
1. Drum wall load-bearing structure
2. Emergency stop
3. Handicap function
4. Anti-squeeze function
5. Anti-strike function
6. Force-sensitive Control
7. Torque Control Function
8. Safety Relay
9. Panic breakout
10. LED Panel
Technical Data
Power supply : 220V/50Hz
Rated current : 6A
Rated power : 1200W
Sliding door drive unit : 100W X 2=200W
Revolving door drive unit : 250W X 2=500W
Down lights : 400W
High speed adjustment range(revolving door) : 1- 4r.p.m.
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m
Specifications
|
Inner Diameter (ID) |
3600mm |
4200mm |
4800mm |
|
Outer Diameter (OD) |
3680mm |
4280mm |
4880mm |
|
Total Height (TH) |
2640mm |
2640mm |
2640mm |
|
Inner Height (IH) |
2300mm |
2300mm |
2300mm |
|
Canopy Height (CH) |
340mm |
340mm |
340mm |
Note : In addition to the standard dimensions, other dimensions are also available for request. For more information please contact your nearest distributor .

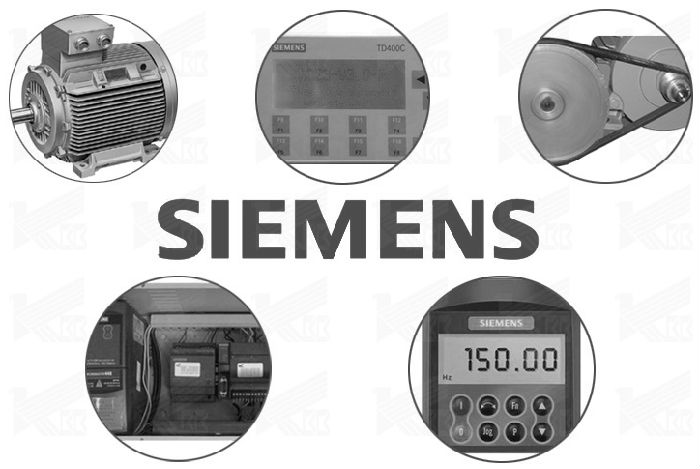

Main Components
1. Control unit : SIEMENS
2. Operating software : KBB
3. Transducer : SIEMENS
4. Revolving door motor : SIEMENS
5. Gear box of revolving door : Sewdrive
6. Sliding door motor : KBB
7. Reduction belt : CONTITECH
8. Key switch : KBB, Six splines
9. Working mode selector : KBB
10. Revolving door detecting radar : BEA
11. Sliding door detecting radar : BEA
12. Reduction photocell : BEA
13. Anti-strike photocell : BEA
14. Anti-squeeze radar : PEPPERL
15. Anti-strike radar : PEPPERL
16. High precision speed /position radar : HENGSTLER
17. Emergency stop button : KBB
18. Safety switch: KBB
19. Glass : YAOPI
20. Aluminum alloy frame : JIHUA
21. Ceiling spot light : PHILIPS
Note : KBB has another more luxurious and more intelligent 2 wings revolving door called KA021,It firstly achieves the combination of "Internet+ Mobile phone + Revolving door" applications. The era of the network and wireless communications in the application of revolving automatic doors marks the technology innovation of KBB. We are walking to the forefront of world automatic door industry.
